For the nor and inverter realizations, Electrical Engineering

Assignment Help:

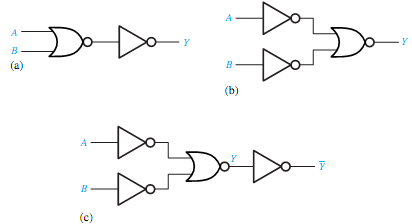

Q. For the NOR and inverter realizations shown in Figure, find the truth table, the type of gate realized, and the expression for the logic output, in each case.

1270_For the NOR and inverter realizations.png
