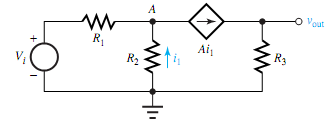

(a) Find vout in the circuit shown in Figure.
(b) With Vi = 2V, R1 = R2 = 2.5k, R3 = 5k, and A = 100, find vout.
