Find the voltage drops across the resistors, Electrical Engineering

Assignment Help:

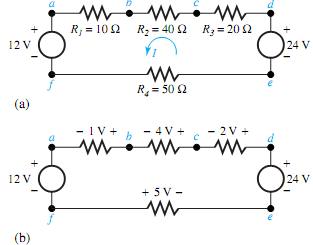

Consider the network shown in Figure (a).

(a) Find the voltage drops across the resistors and mark them with their polarities on the circuit diagram.

(b) Check whether the KVL is satisfied, and determine Vbf and Vec.

(c) Show that the conservation of power is satisfied by the circuit.

791_Find the voltage drops across the resistors.png
