Find the velocity and acceleration of the slider, Mechanical Engineering

Assignment Help:

Question:

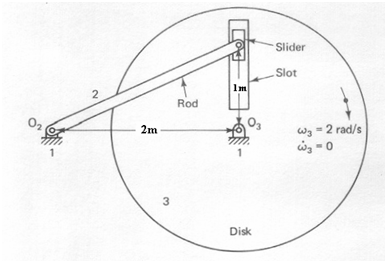

The disk 3 shown in the figure rotates at a constant angular velocity ω3 = 2.0 rad/s.

A slider in a slot in the disk causes rod 2 to rotate.  When the slider is 1.0m from O3, find the relative (1) velocity and (2) acceleration of the slider with respect to the slot.
