Find the expressions for the inductor current, Electrical Engineering

Assignment Help:

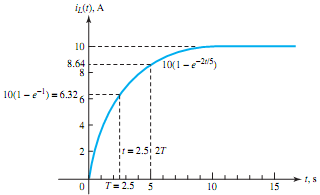

Consider the RL circuit of Figure with R = 2, L = 5H, and v(t) = V = 20 V (a dc voltage source). Find the expressions for the inductor current iL(t) and the inductor voltage vL(t) for t> 0, and plot them.

901_Find the expressions for the inductor current.png
