Explain the T Flip Flop?

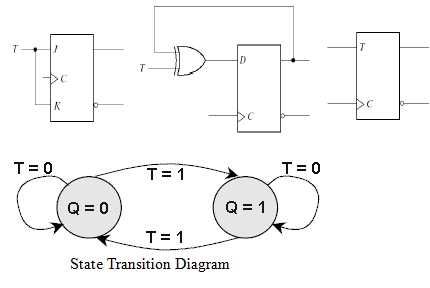

The toggle, or T, flip-flop is the bistable device that changes state on command from a common input terminal.



1088_T Flip Flop.png

Truth Table

T

CLK

Q

Q'

0

1

Qn

Qn'

1

1

Qn'

Qn

X

0

Nochange
