Explain the Screed unit

The main screed is pivoted at the centre point of the machine to assure a constant flatness of work on uneven grounds. It consists of 2440 mm main screed with mechanical extension of suitable size to work up to 4000 mm and hydraulic vibration. (Optional) Hydraulically extendable screed with basic screed width of 4.5 meter and hydraulically extendable up to 5.5 meter. The various screed functions-burner ignition, vibrator operation, slope control, and others

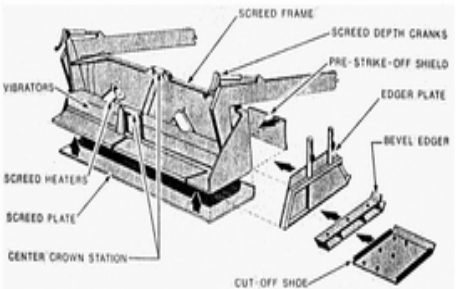

1321_paver machine.png

Screed unit
