Explain Principal Process for Abrasive Jet Cutting Machines

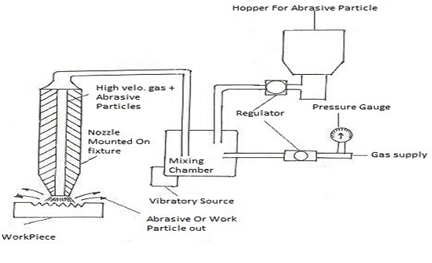

Abrasive particles are fed from the hopper in to the mixing chamber by regulating device as shown in figure.
The high pressure air/gas entrains the abrasive particles and this mixture emerges from a small nozzle at high velocity.

2084_Principal Process for Abrasive Jet Cutting Machines.png

This stream of abrasive particles strikes the work piece at nearly the speed of sound and cuts the material.
