Explain keyboard interfacing to 8088 through 8279.
The 8279 is a programmable keyboard and display interfacing component which scans and encodes up to a 64-key keyboard and controls up to a sixteen-digit numerical display.
The keyboard interface has built in first-in first-out (FIFO) buffer which allows this store up to eight keystrokes before the microprocessor should retrieve a character. The display section controls up to sixteen numeric displays from an internal 16 X 8 RAM which stores the coded display information.
The keyboard section has eight lines that can be connected to eight columns of a keyboard, in addition two additional lines including shifting and CNTL/STB keys. The key pressed are automatically de-bounced and the keyboard can operate into two modes two as: key lock out or n-key rollover. When two keys in the two as key lock out mode are pressed concurrently, only first key is known. In the N-key roll over mode, simultaneous key are known and their codes are stored into the internal buffer.
Control Word: 000DDMMM - Mode set is command with an op-code of 000 and two fields programmed to choose the mode of operation for the 8279. The DD field chooses the mode of operation for the display and the MMM field decides the mode of operation for the keyboard.

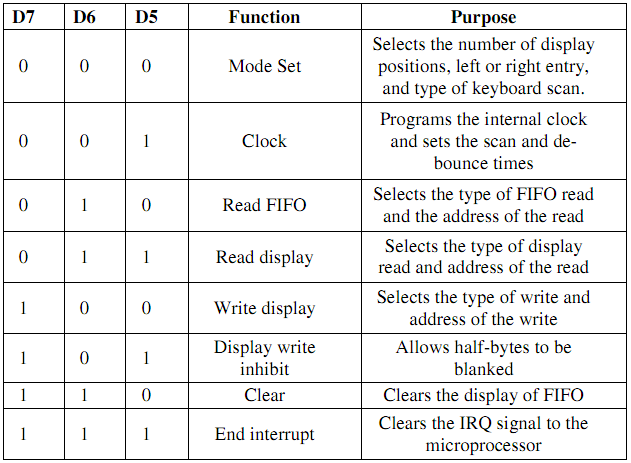

The 8279 control word summary
Trap is called as Non-Maskable interrupts, which is used in emergency condition.
(a) Design a 6-bit R-2 R ladder D/A converter. (b) For V ref = 10 V, find the maximum output voltage. (c) Determine the output voltage increment. (d) If the output voltag
A balanced three phase, four wire, WYE connect load consisting of per phase resistenance of A ohms and inductive reactance of D ohms/phase is connected to a B000 V three phase sour
principle of 120 degree mode of operation of voltage source intverter
Voltage divider bias: The voltage divider is made by using external resistors R 1 and R 2 . The voltage beyond than R 2 forward biases the emitter junction. Via prop
Q. Explain about Frequency Shift Keying? In this scheme frequency of the carrier signal is changed according to the data. Transmitter sends different frequencies for a "I" than
when i/p voltg is grater than battery diode is clse or open
Q. Explain Analog communication system? Analog signals in an analog communication system can be transmitted directly via carrier modulation over the communication channel and d
Q. Description of clauses used in a parallel construct? When a thread comes across a parallel construct a set of new threads is made to execute parallel region. Inside the para
Q. Explain basic working of Integrators? Figure shows a noninverting integrator, which can be seen to be a negative impedance converter added with a resistor and a capacitor. N
