Explain Combinational logic circuits

Ans. Combinational logic circuits:-

(i) Outputs only depend upon present state of the input.

(ii) No memory element present or no feedback connection.



2258_combinational circuit.png

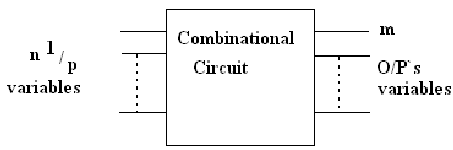

Block diagram of combinational circuit
