Explain about subsystem and object of object oriented modeling

A subsystem is a grouping of elements of that constitutes a specification of behaviour offered by other contained elements.

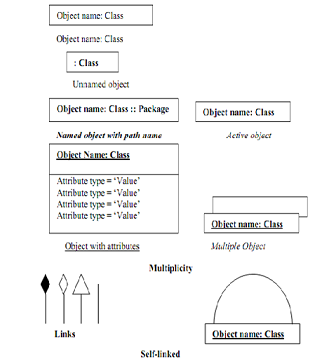

An object is an instance of the class. The object can be shown as instance of a class, with path name along with attributes. Multiple objects can be connected with links. The notation for named and unnamed objects, object with path name, active objects and object with attributes, self linked object and multiple objects is shown as:

1668_user case.png

      Figure: Different types of objects
