Enumerate about the high-level transitions result, Database Management System

Assignment Help:

Show, with the help of an example, that relatively high-level transitions result when system or program is stimulated by the outside events.

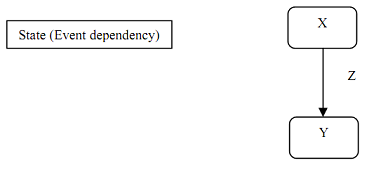

In diagram below, we can observe if that initial state is state X, if event Z occurs and then state X is terminated and state Y is comes in impact.



2191_State event dependency.png
