Discuss the operation of the jk flip-flop, Electrical Engineering

Assignment Help:

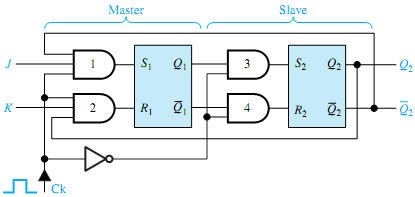

Q. Figure shows the master-slave JKFF. Assuming that the output changes on the falling edge of the clock pulse (i.e., when the clock pulse goes from high to low), discuss the operation of the flip-flop, and obtain a table indicating the state of normal output Q after the passage of one clock pulse for various combinations of the inputs JK.

2015_Discuss the operation of the Jk flip-flop.png
