Determine the steady state position error, Electrical Engineering

Assignment Help:

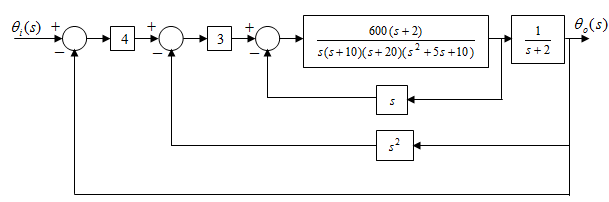

Figure shows the block diagram of an aircraft pitch stabilization system which uses position, velocity and acceleration feedback.

i) Show that for a unit step input the steady state position error is zero.

ii) Determine the steady state position error for a unit velocity input.
