Determine the voltages vx using voltage division, Electrical Engineering

Assignment Help:

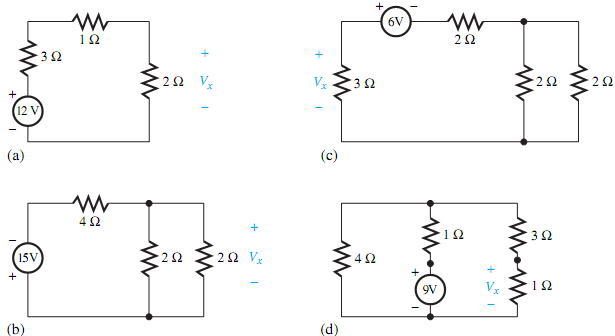

Q. Determine the voltages Vx using voltage division and equivalent resistor reductions for the circuits shown in Figure.

1895_Determine the voltages Vx using voltage division.png
