Determine the transfer function c/r for the block diagram, Electrical Engineering

Assignment Help:

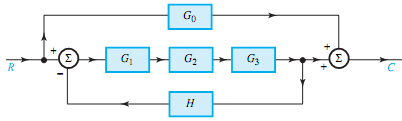

Feedback amplifiers are of great importance in electronic circuits. The block diagram of a class of feedback amplifier is shown in Figure. Determine the transfer function C/R for the block diagram.

1284_Determine the transfer function C-R for the block diagram.png
