Determine the tension in the cable, Physics

Assignment Help:

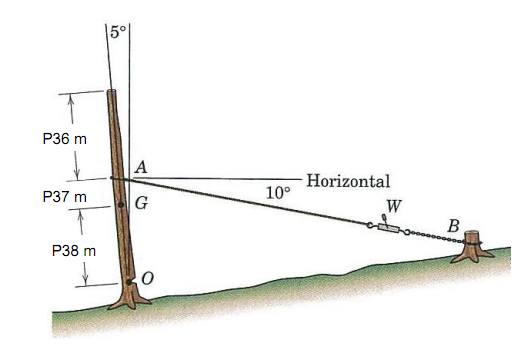

The tree needs to fall uphill even though it is leaning downhill.  The felling notch at O is sufficiently large so that the resisting moment at O is negligible.  The trunk above point O weighs P35 kN.  With the aid of the winch W the cable prevents the tree from falling downhill.  Determine the tension in the cable AB.  Other dimensions in metres are P36, P37 & P38.

The tension in the cable AB in kN to2 decimal places is,

1159_Determine the Tension in the Cable.png
