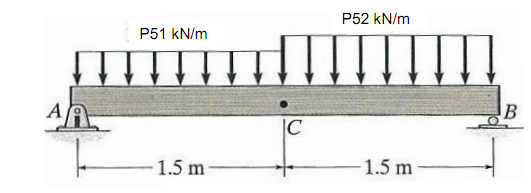

Determine the Shear Force in kN rounded to 1 DP and Bending Moment in kN.m rounded to 1 DP at point C in the beam when the Uniformly Distributed Load (UDL) on AC is P51 kN/m and the UDL on BC is P52 kN/m.

The Shear Force in kN at C rounded to 1DP is

ANS

The Bending Moment in kN.m at C rounded to 1DP is

ANS
