Determine the output waveforms for and and or gates, Computer Engineering

Assignment Help:

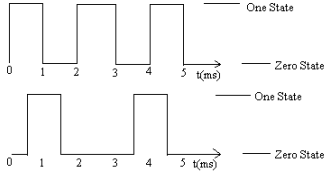

The voltage waveforms shown in given fig. are applied at the inputs of 2-input AND and OR gates. Determine the output waveforms.

1011_Determine the output waveforms for AND and OR gates.png

Ans.

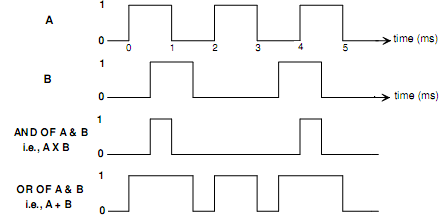

The Output waveforms for AND and OR gates are shown in fig.(a)

1559_Output Waveforms.png

Fig.(a) Output Waveforms
