Determine the maximum stress in the beam, Mechanical Engineering

Assignment Help:

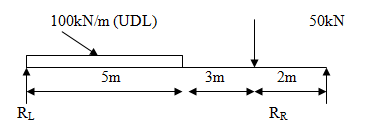

For the beam shown below, we need to determine:

(i) The support reactions RL and RR

(ii) The shear force and bending moment diagrams

(iii) The maximum stress in the beam due to bending.

1617_Determine the Maximum Stress in the Beam.png
