Describe span of bridge and varying depth, Mechanical Engineering

Assignment Help:

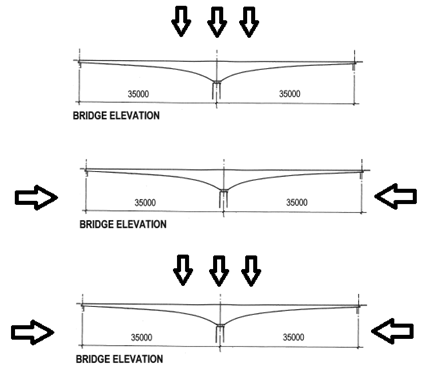

The press tressed bridge structure would look like as shown below,

55_bridge elevation.png



The following factors influences the decision to select the particular prestressing,

1/Span of bridge

2/Varying depth

3/Temperature and humidity

4/Practicality of implementation.
