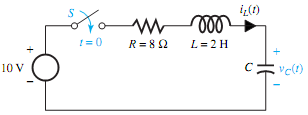

Q. Consider the circuit of Figure. Determine and sketch iL(t) and vC(t) for capacitance values of

(a) 1/6 F, (b) 1/8 F, and (c) 1 / 26 F. Note that the capacitance values are chosen here for calculational ease, even though they are too big and not typical.

1152_Determine the current for given capacitance values.png
