Demonstrate the UML model

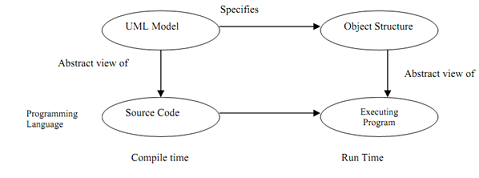

Using UML, it is possible to generate code in any of the programming language from UML model (called forward engineering) and rebuild a model from an implementation into UML (called reverse engineering) as show in the Figure given below.



2410_life cycle.png

                                                               Figure: The relationship between models and code
