Define the Ideal Surface Roughness

The ideal surface roughness represents the best possible finish which may be obtained for a given tool shape and can only be approached if built up edge, chatter ,inaccuracies, in machine tool movement etc. are eliminated.

1977_Ideal Surface Roughness.png

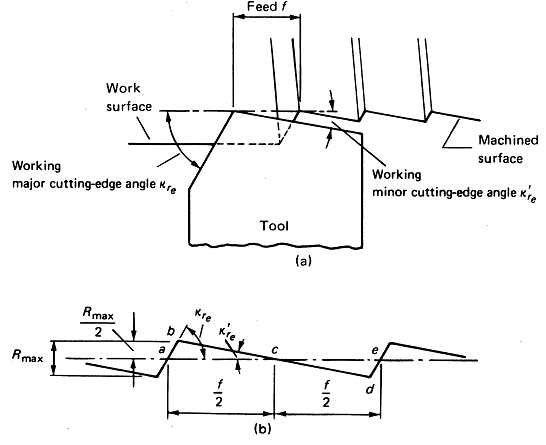

Figure: Ideal Surface finishes for Turning

Ideal surface finish for the turning operation where a sharp corner tool is used is shown in Figure.
