Current flow through each resistor using mesh analysis, Electrical Engineering

Assignment Help:

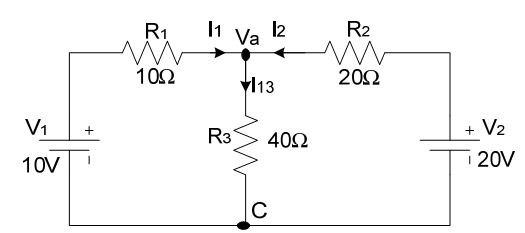

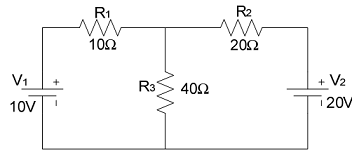

Find the current flow through each resistor using mesh analysis for the circuit below.




Step : Determine the number of common nodes and reference node within the network (Figure).
 1 common node (Va) , reference node C

Step: Assign current and its direction to every distinct branch of the nodes in the network (Figure).
