Compare rc coupled and transformer coupling, Electrical Engineering

Assignment Help:

Q. Compare RC coupled and Transformer coupling?

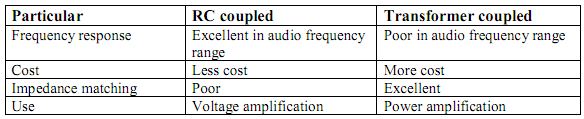

1412_Compare RC coupled and Transformer coupling.png
