Communications system, Other Engineering

Assignment Help:

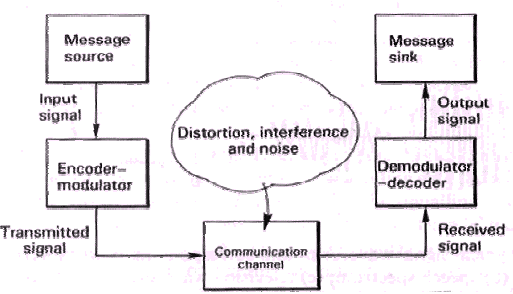

Communications System

• Information Source

- Information may take many forms: data, image, voice, video

• Transmittter

- Processes information into a form suitable for transmission

- Modulates information onto waveform which will propagate

- Modulates information onto waveform which will propagate

• Channel

- Relays information between locations (possibly corrupts it)

• Receiver

- Must reconstruct transmitted information from received waveform as accurately as possible



296_communication system.png
