Characteristics of Common Source Amplifier

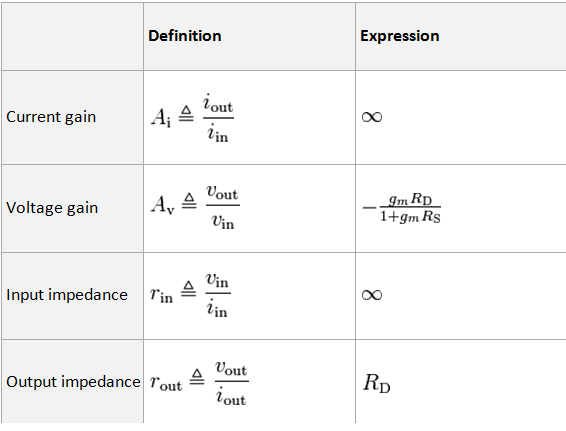

At low frequencies and by using a simplified hybrid-pi model, the following small-signal characteristics can be derived.
