Calculate the maximum stress, Mechanical Engineering

Assignment Help:

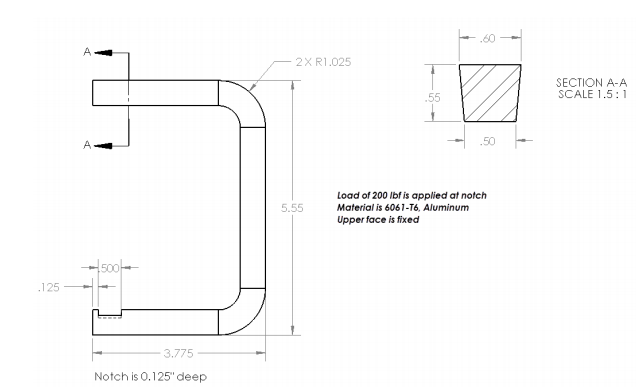

Determine the analytical solution for the maximum stress in the member shown. Submit screen shots that show the shape of the elements that result with a global element size of 0.15 a tolerance of 0.0075. Capture a copy of the mesh details and include it with the meshed model. Turn in a plot of the von Mises stresses in psi. Calculate the % error between the analytical and numerical stress values.

2066_Calculate the Maximum Stress.png
