Calculate the magnitudes of the masses, Mechanical Engineering

Assignment Help:

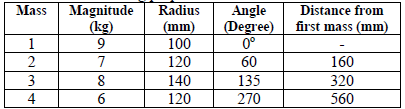

A rotor has the given properties :

1368_determine the magnitudes of the masse.png

If the shaft is balanced by two counter masses located at 100 mm radii and revolving in planes midway of plan 1 and 2 and midway of 3 and 4, calculate the magnitudes of the masses and their respective angular Positions.
