Calculate the current flow and voltage drops, Electrical Engineering

Assignment Help:

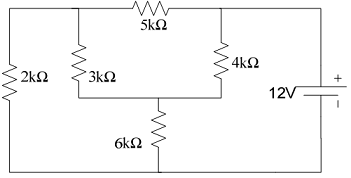

Based on Figure, using star-delta transformation, calculate the current flow and voltage drops at 6kΩ resistor.
