Using the LM741operational amplifier build a current amplifier with the voltage gain of |AV| = 300 v/v ± = 20% . Measure all necessary parameters of the amplifier (as per deliverables). Then, use the same operational amplifier to build a current amplifier with the voltage gain of |AV| = 5 v/v ± = 20%
Deliverables:
a.) Show the proposed amplifier circuit and your hand calculations of the voltage gain, bandwidth and input/output resistance.
b.) Show the amplifier circuit in PSpice that you have used to evaluate the output resistance of your amplifier.
c.) Show the actual frequency response of your amplifier using NI ELVIS.

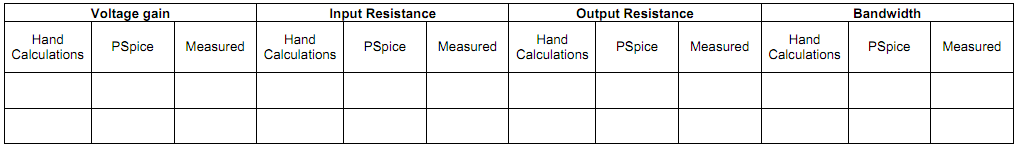

d.) Fill in the following table using the data from your hand calculations, PSpice simulations and actual measurements and present it to your tutor:
i have an assignment related to magnetic field i have attached the( MRI assignment sheet)[1] please read it carefully in the assignment 2 methods to get the results - one by
Q. Draw the differentiator circuit. Explain its principle of operation with necessary waveforms ? A circuit in which the output voltage is directly proportional to the derivati
Avalanche breakdown region: Even though these regions are well described for sufficiently large applied voltage, they overlap somewhat for small (less than a few hundred milli
For Sign Flag JP ( jump on plus ) Jump on minus ) Instructions JP transfer the execution of the program to the specified memory address if sign flag is set (S=
Determine currents in the circuits: Determine currents I 1 and I 2 in the given circuits by applying KVL. Solution We apply KVL for first loop : 10 = 1 I 1 + 1
Question 1 With the help of energy band diagram differentiate between Insulators, semiconductors and metals Question 2 Explain the operation of RC phase shift oscillator
Q. DTL AND TTL LOGIC CIRCUITs? Bipolar transistorswere the first solid-state switching devices commonly used to implement digital logic circuits in the 1950s and 1960s. These c
special function register
3. Why the external characteristics of a DC shunt generator is more drooping than that of a separately excited generator?
Figure shows the block diagram of an aircraft pitch stabilization system which uses position, velocity and acceleration feedback. i) Show that for a unit step input the steady s
