Source of drage

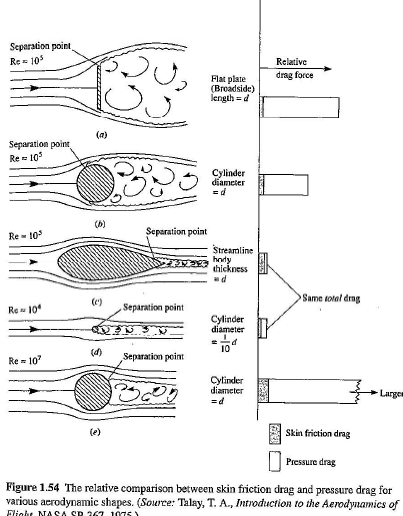

Total Drag on an aerofoil is called profile drag

- Skin friction

• due to tangential force arising from friction

- Pressure

• Form - due to the integrated effect of pressuremodification from presence of the boundary layer

• Wave - due to the presence of shock waves

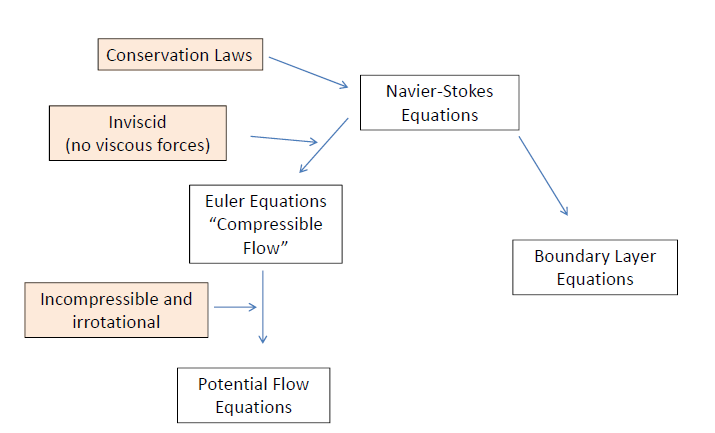

• The potential prediction of drag is zero- Inviscid, incompressible, irrotational

672_source of drag.png

1493_source of drag1.png
