Use first angle projection method to show side view

Assignment Help Other Engineering

Reference no: EM132340811

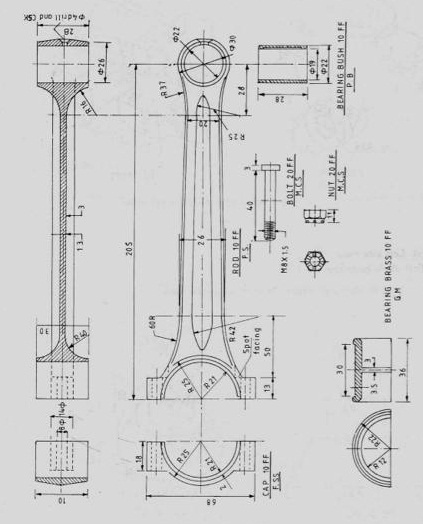

Question : Figure shows the parts of an I.C. engine connecting rod. Draw the following assembled views.

1) Sectional front view

2) Top view

3) Side view

Use first angle projection method.
