Block Diagram, System Performance and Responses

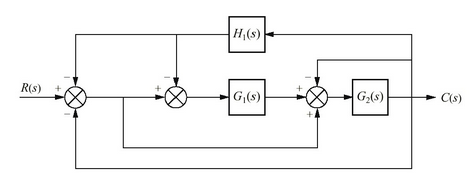

1. Simplify the above block diagram and determine the closed diagram function. (Join summing junction 2 and 3, then simplify the block diagram using parallel, cascade and feedback connection.

2.  If given transfer function G(s) = 100k/(s+15)(s+27)(s+38) and H(s) = 1, using Routh Hurwitz criterion, find the value of K that will make this unity feedback system, Critically stable.

3.  Given K=307.8 in question 2, draw it's bode plots and determine the gain margin and phase margin in the system.

4.  Given K=307.8 in question 2 again, find the steady state error for a unit step input and a unit ramp input respectively. If you are required to improve the steady state error and make it to be zero for a unit step input, should you choose a PI and  PD controller?

Verified Expert

In this assignment numerical and theoretical questions related to control system design is answered in the word document. The time-domain and frequency domain analysis of the control system is undertaken and all the diagrams and mathematical data is put in the report.
