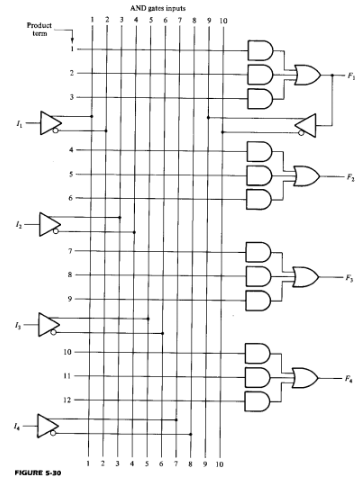

Question: The following is a truth table of a 3-input, 4-output combinational circuit. Tabulate the PAL programming table for the circuit and mark the fuses to be blown in a PAL diagram similar to the one shown in Fig.

   Inputs                           Outputs

x     y     z                    A     B     C     D

0    0    0                0     1     0    0

0    0    1                1     1     1    1

0    1    0                1     0     1     1

0    1    1                0     1     0     1

1    0    0                1     0     1     0

1    0    1                0     0     0     1

1    1    0                1     1     1     0

1    1    1                0     1     1     1
