Irrigation system

Assignment Help Mechanical Engineering
Reference no: EM13882

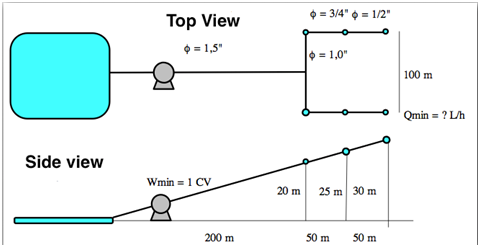

1) Consider the diagram below, where a pump is used to draw water from a lake to feed an irrigation system.

1974_Irrigation system.png


a) Which of the points of departure the minimum water flow occurs, and what is its value?

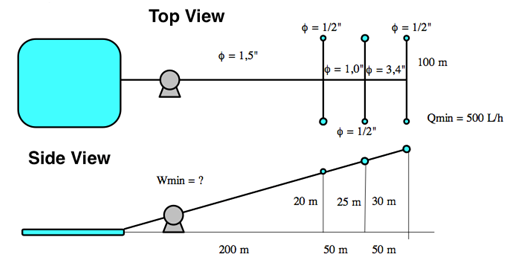

Now restate the problem as follows:

1161_Irrigation system1.png

b) What is the minimum power of the pump to ensure that at any point of exit of water, the flow rate is at least 500 L / h?

Reference no: EM13882
