Find the mesh currents using mesh analysis

Assignment Help Electrical Engineering

Reference no: EM131907001

Question 1 - For the circuit shown in Figure, find i₁, i₂, i₃, and i₄.

Question 2 - Using the given circuit -

Find -

a) The current i₀

b) The voltage drop across the 5 Ω resistor; V_x.

c) The power dissipated by the 2V_x dependent source.

d) Does the 2Vx supply deliver or absorb power? Why?

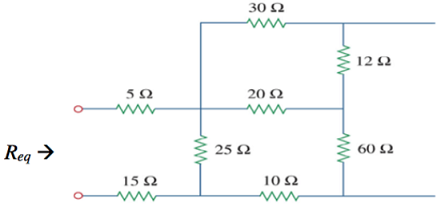

Question 3- Find R_eq in the circuit shown in figure below.

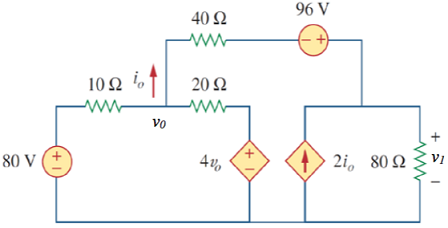

Question 4 - From the circuit shown in figure below.

a) Using nodal analysis find v₀ and v₁.

b) Find current i₀.

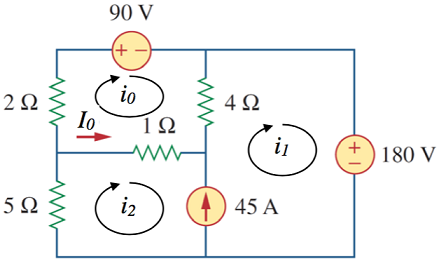

Question 5 - For the circuit given below, find the following using mesh analysis:

a) The mesh currents i₀, i₁, ands i₂.

b) The branch current I₀.

Reference no: EM131907001
