Find the corresponding base impedance and va

Assignment Help Electrical Engineering

Reference no: EM131359487

Assume that 30 V and 5 A are chosen as base voltage and current for the circuit of Problem 2.1.

a) Find the corresponding base impedance and VA.

b) Find the phasor currents I₂ and I₃ in per unit.

c) Determine the source apparent power in per unit.

Problem 2.1

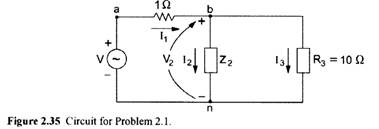

In the circuit shown in Figure 2.35, the source phasor voltage is V = 30∠15°. Determine the phasor currents I₂ and I₃ and the impedance Z₂. Assume that I1 is equal to five A. Calculate the apparent power produced by the source and the individual apparent powers consumed by the 1 -ohm resistor, the impedance Z₂, and the resistance R₃. Show that conservation of power holds true.

Reference no: EM131359487
