Develop an activity relationship chart for four departments

Assignment Help Database Management System

Reference no: EM131469678

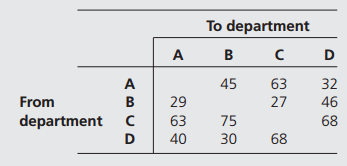

Question: A machine shop located on the outskirts of Los Angeles accepts custom orders from a number of high-tech firms in southern California. The machine shop consists of four departments: A (lathes), B (drills), C (grinders), and D (sanders). The from-to chart showing distances in feet between department centers is given here.

66_Dep 1.png

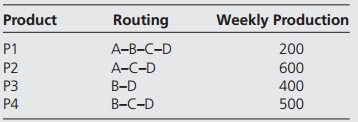

The shop has accepted orders for production of four products: P1, P2, P3, and P4. The routing for production of these products and the weekly production rates are

Assume that products are produced in batches of size 25.

a. Convert this information into a from-to chart giving numbers of materials handling trips per week between departments.

b. If the cost to transport one batch 1 foot is estimated to be $1.50, convert the from to chart you found in part (a) to one giving the materials handling cost per week between departments.

c. Develop an activity relationship chart for these four departments based on the results of part (b). Assume that A is assigned to the highest cost and O to the least, with the rankings E and I assigned to the costs falling in between the extremes.

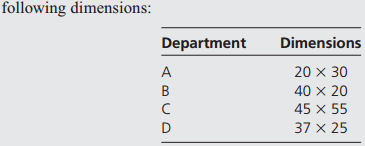

d. Suppose that the machine shop is located in a building that is 60 feet by 80 feet. Furthermore, suppose that departments are rectangularly shaped with the

Sketch a layout consistent with the rel chart you obtained in part (c).

Reference no: EM131469678

Questions Cloud

Find the optimal assignment to minimize employee travel time : A real estate firm wishes to open four new offices in the Boston area. There are six potential sites available. Based on the number of employees in each office.

Identify six sources of export marketing information : Identify at least six sources of export marketing information. How can youconvincethem that EU could do the best job or better job than any other shipper?

Identify if there have been changes in purchasing patterns : Identify if there have been changes in the purchasing patterns of your organization's target market in recent years.

Find the assignment of warehouses to sites : A large supermarket chain in the Southeast requires five additional warehouses in the Atlanta area. It has identified five sites for these warehouses.

Develop an activity relationship chart for four departments : A machine shop located on the outskirts of Los Angeles accepts custom orders from a number of high-tech firms in southern California.

Circuit analysis of a circuit using laplace transforms : Circuit Analysis of a circuit using Laplace Transforms - determine the voltage across the two capacitors, v1(t) and v2(t).

Explain how federal reserve operates in the united states : Explain how Federal Reserve operates in the United States. What is the function of the FED? How does the FED support the banking system of the United States.

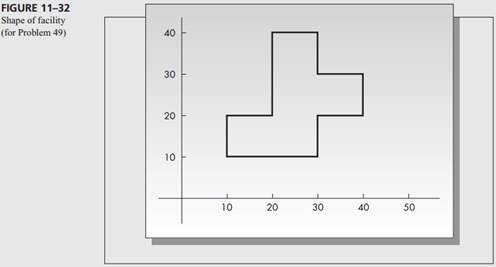

Find the location of the centroid of this facility : A facility has the shape shown in Figure. Using the methods described find the location of the centroid of this facility.
