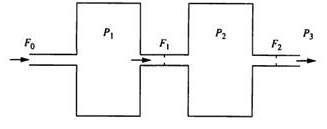

Question: The system of vessels in Figure has gas flowing through it, and F₀ is independent of Pi.

(a) Assume that the flow through the restrictions is subsonic.

(1) Derive linearized models for the pressure in each system.

(2) Determine the transfer function for F₂(s)/F_o(s).

(3) Describe the response of this system to a step in Fo.

(b) Repeat the analysis in part (a) for sonic flow through the restrictions.
