The maximum power transfer theorem, Electrical Engineering

Assignment Help:

The maximum power transfer theorem states:

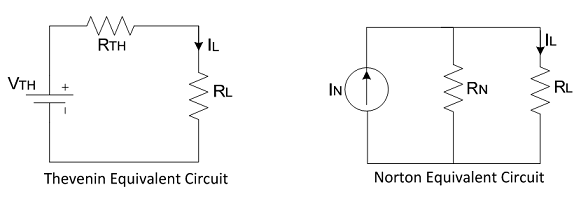

'A load will receive maximum power from a linear bilateral dc network when its total resistive value equal to the Thevenin's or Norton resistance of the network as seen by the load.
