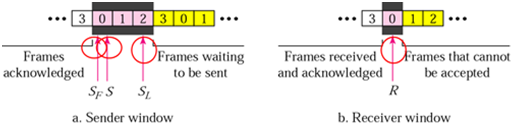

Q. Show the Go-back-N - Control Variables?

- S- holds the series number of the recently sent frame

- SF - holds sequence number of the first frame in the window

- SL - holds the sequence number of the last frame

- R - sequence number of the frame expected to be received

2017_Show the Go-back-N - Control Variables.png

1658_Show the Go-back-N - Control Variables1.png
