Phase detector

Phase detector (PD) consists of a multiplier and a low pass filter. The output of the PD has a magnitude proportional to Vs cos2φ where φ is the phase shift between the signal and the reference. This provides the directional information as well as the magnitude of the displacement.

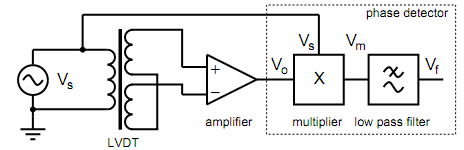

1640_phase detectore.png
