Q. Motoring mode of rotating machines?

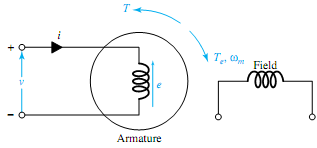

The motoring mode has electric power input and mechanical power output. The electromagnetic torque Te drives the machine against the load torque T. The input voltage v drives the current into the winding against the generated emf e.

2097_motoring mode.png
