Explain the virtual ground in an operational amplifier, Physics

Assignment Help:

Explain the significance of virtual ground in an operational amplifier?

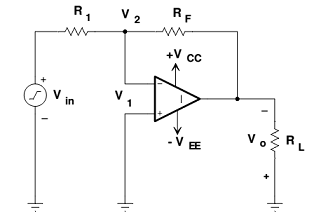

Ans: Significance of Virtual Ground: Fig. (a) illustrates the circuit diagram of basic Inverting Amplifier. In this figure, the non-inverting terminal  is  grounded and input signal is applied to inverting terminal via resistor R1. However, difference input voltage is ideally zero: that is, voltage at the inverting terminal (v2) is approximately equal to that at non-inverting terminal (v1). Or we can say,  inverting  terminal  voltage  v2  is  approximately  at  ground  potential. Hence, inverting terminal is said to be at Virtual Ground. This notion is extremely useful in analysis of closed loop Op-amp circuits.



1235_Inverting Amplifier with Feedback.png
