Explain the operation of JK flip flop when all inputs are 0, Computer Engineering

Assignment Help:

Write the truth table for a clocked J-K flip-flop that is triggered by the positive-going edge of the clock signal. Explain the operation of this flip-flop for the following conditions.

Initially all inputs are zero and assume the 'Q' output to be 1.

Ans.


Truth table for clocked J K Flip- flop

clock

J

K

Q(t+1)

0

X

X

Q(t)

1337_Truth Table for clocked JK flip flop.png

0

0

Q(t)

-do-

1

0

1

-do-

0

1

0

-do-

1

0

Q'(t)

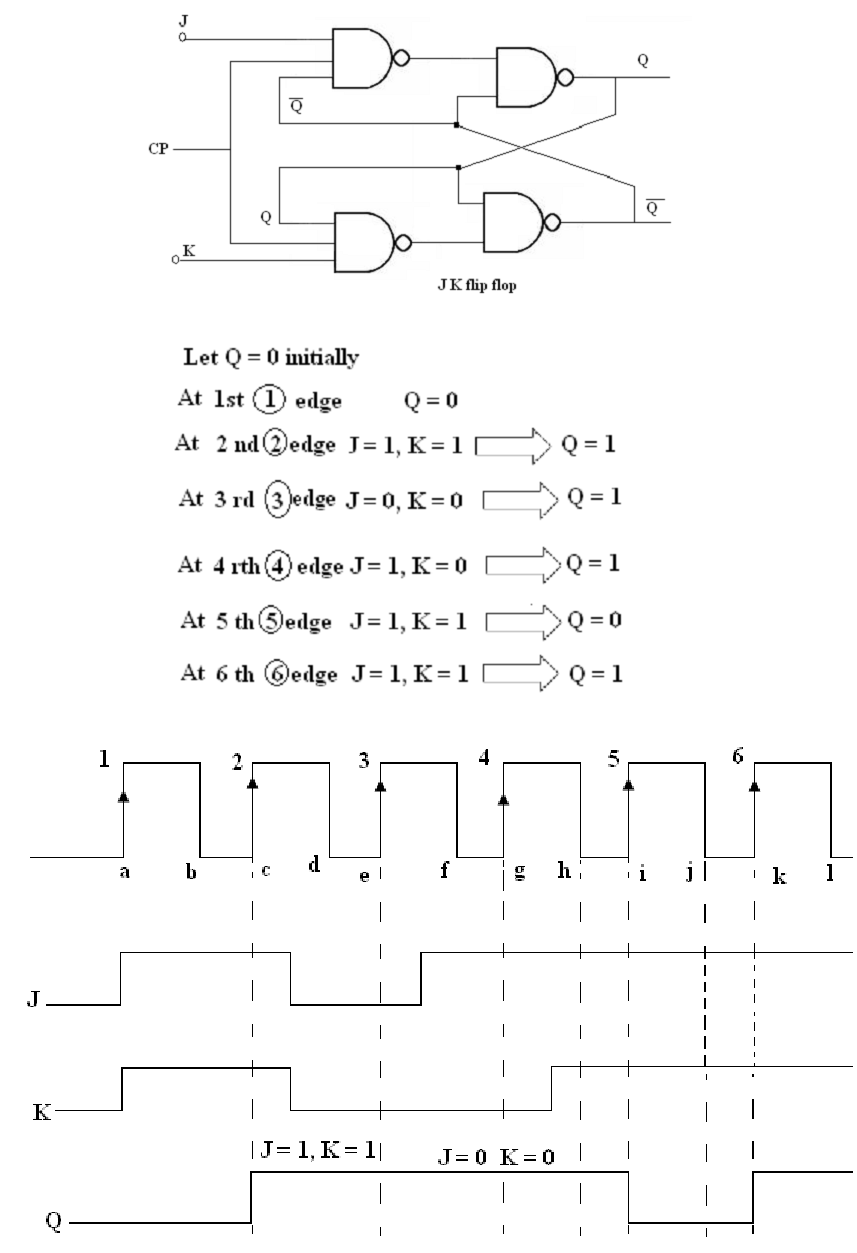

1941_operation of jk flip-flop.png
