Determine the Forces On Bar

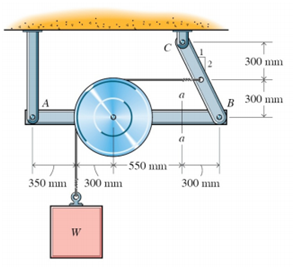

Two bars and a cable are used to support a block as shown. The two bars have negligible weight and the pulley is free to rotate. The mass of the pulley is 20 kg and the mass of the block is 80 kg.

1523_Determine the Forces On Bar.png

a) Draw the free-body diagrams of bar BC,bar AB, and the pulley.

b) Determine the forces on bar AB. Draw a report diagram.
