Consider a database whose universe is a finite set of vertices V and whose unique relation .E is binary and encodes the edges of an undirected (resp., directed) graph G: (V, E). Each undirected edge between the nodes o and u (resp., directed edge from the node v to the node u) is encoded by the two atoms E (v, u) and E (u, v) (resp., by the single atom E (v, u)).

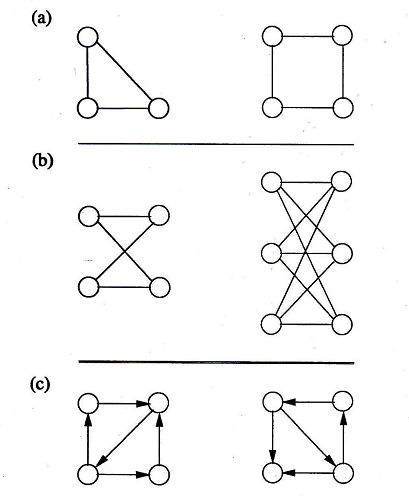

Consider the pairs of stucture (undirected (resp., directed) graphs) shown in Fig. 1. Suppose that the graphs are encoded in a database as explained above. For each pair, answer the following questions:
1. What is the smallest quantifier rank k for which the spoiler wins the k-move Ehrenfeucht-Fraisse game on the pair of structure?
2. Derive a Boolean first-order query from your winning strategy that is true on one structure but not on the other (you can use the equality relation between vertices).
