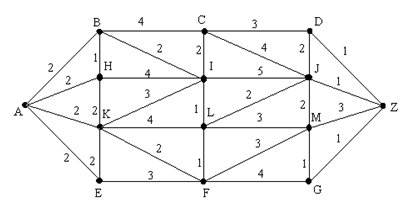

Q. In the given figure find the shortest path from A to Z using Dijkstra's Algorithm.

2234_Dijkstra algorithm.png



Ans:

1.  P=φ;  T={A,B,C,D,E,F,G,H,I,J,K,L,M,Z}

Let L(A)=0 and L(x)=∞ for all x in T ( L(x) denotes label of x)

2.  P={A}, T={B,C,D,E,F,G,H,I,J,K,L,M,Z} A≠Z so calculate the new labels for vertices in T



L(B)=min(∞, 0+2)=2

L(H)=min(∞, 0+2)=2

L(C)=min(∞, 0+∞)=∞

L(I)=∞

L(D)=∞

L(J)=∞

L(E)=min(∞, 0+2)=2

L(K)=min(∞, 0+2)=2

L(F)=∞

L(L)=∞

L(G)=∞

L(M)= ∞ ; L(Z)= ∞



3.  v=B, is the vertex with the smallest label, L(v)=2

P={A,B}, T={C,D,E,F,G,H,I,J,K,L,M,Z} B≠Z so calculate the new labels for vertices in T



L(C)=min(∞, 2+4)=6

L(I)=min(∞, 2+2)=4

L(D)=∞

L(J)=∞

L(E)=min(2,2+∞)=2

L(K)=min(2,2+∞)=2

L(F)=∞

L(L)=∞

L(G)=∞

L(M)=∞

L(H)=min(2,2+1)=2

L(Z)= ∞



4.  v=E, vertex containing the smallest label, L(v)=2





P={A,B,E}, T={C,D,F,G,H,I,J,K,L,M,Z} B≠Z so calculate  the new labels for vertices in T

L(C)=min(6, 2+∞)=6

L(J)= ∞

L(D)=∞

L(K)=min(2,2+2)=2

L(F)=min(∞,2+3)=5



L(G)=∞

L(L)=∞

L(H)=∞

L(M)=∞

L(I)= ∞

L(Z)= ∞





5.  v=K, vertex containing the smallest label, L(v)=2

P={A,B,E,K}, T={C,D,F,G,H,I,J,L,M,Z} K≠Z so calculate the new labels for vertices in T

L(C)=min(6, 2+∞)=6

L(J)= ∞

L(D)=∞

L(L)=min(∞,2+4)=6

L(F)=min(5,2+2)=4

L(M)=∞

L(G)=∞

L(Z)= ∞

L(H)=min(∞,2+2)=4



L(I)= min(∞,2+3)=5





6.  v=F, vertex containing the smallest label, L(v)=4

P={A,B,E,K,F}, T={C,D,G,H,I,J,L,M,Z} K≠Z so calculate the new labels for vertices in T

L(C)=min(6, 4+∞)=6

L(I)= min(5,4+∞)=5

L(D)=∞

L(L)=min(6,4+1)=5

L(G)=min(∞,4+4)=8

L(M)=min(∞,4+3)=7

L(G)=∞

L(Z)= ∞

L(H)=min(4,4+∞)=4

L(J)= ∞



7.  v=H, vertex containing the smallest label, L(v)=4

P={A,B,E,K,F,H}, T={C,D,G,I,J,L,M,Z}



K≠Z so calculate the new labels for vertices in T

L(C)=min(6, 4+∞)=6

L(J)= min(∞,4+∞)=∞

L(D)=∞

L(L)=min(5,4+∞)=5

L(G)=min(8,4+∞)=8

L(M)=min(7,4+∞)=7

L(I)=min(5,4+4)=5

L(Z)= ∞



8.  v=I, vertex containing the smallest label, L(v)=5

P={A,B,E,K,F,H,I}, T={C,D,G,J,L,M,Z} I≠Z so calculate the new labels for vertices in T

L(C)=min(6, 5+2)=6

L(L)= min(5,5+1)=5

L(D)=∞

L(M)=min(7,5+∞)=7

L(G)=min(8,5+∞)=8

L(Z)=∞

L(J)=min(∞,5+5)=10





9.  v=L, vertex containing the smallest label, L(v)=5

P={A,B,E,K,F,H,I,L}, T={C,D,G,J,M,Z}

L≠Z so calculate the new labels for vertices in T

L(C)=min(6, 5+∞)=6

L(J)= min(10,5+2)=7

L(D)=∞

L(M)=min(7,5+3)=7

L(G)=min(8,5+∞)=8

L(Z)=∞



10. v=C, vertex containing the smallest label, L(v)=6

P={A,B,E,K,F,H,I,L,C}, T={D,G,J,M,Z} C≠Z so calculate the new labels for vertices in T

L(D)=min(∞,6+3)=9

L(M)= min(7,6+∞)=7

L(G)=min(8,6+∞)=8

L(Z)=∞

L(J)=min(7,6+4)=7





11. v=J, vertex containing the  smallest label, L(v)=7

P={A,B,E,K,F,H,I,L,C,J}, T={D,G,M,Z} J≠Z so calculate the new labels for vertices in T

L(D)=min(9,7+2)=9

L(M)= min(7,7+2)=7

L(G)=min(8,7+∞)=8

L(Z)=min(∞,7+1)=8



12. v=M, vertex containing the smallest label, L(v)=7

P={A,B,E,K,F,H,I,L,C,J,M}, T={D,G,Z} M≠Z so calculate the new labels for vertices in T

L(D)=min(9,7+∞)=9

L(Z)= min(8,7+3)=8

L(G)=min(8,7+1)=8



13. v=G, vertex containing the smallest label, L(v)=8

P={A,B,E,K,F,H,I,L,C,J,M,G}, T={D,Z}

G≠Z so calculate the new labels for vertices in T L(D)=min(9,8+∞)=9                                                                          L(Z)= min(8,8+1)=8



14. v=z, so now  we stop here,  the Shortest distance is 8

Backtracking all the steps we get, shortest path as: A-K-F-L-J-Z
